Fluke Networks TS54-A-09-TDR TS54 Pro LCD Butt-In TDR Telephone Test Set with ABN/PP
$99.00
$715.00
Save: $
Size:
One Size
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
Incorporates a TDR, tone generator, and telephone test set for testing VDV cabling as well as pots quality on live dsl lines without disrupting data services
Available with various line cord connectors to suit specific applications
TDR measures cable length and locates faults on twisted pair and coaxial cable as well as parallel conductors, and analog tone generator has five distinct cadences for isolating individual wire pairs
Telephone test set detects dial tone and polarity, places and receives calls, indicates line voltage and current, verifies call waiting service, and has a speakerphone for hands free conversation
High visibility glow in the dark keypad with standard dialing keys and function keys, plus a backlit lcd for tracking functions and test status

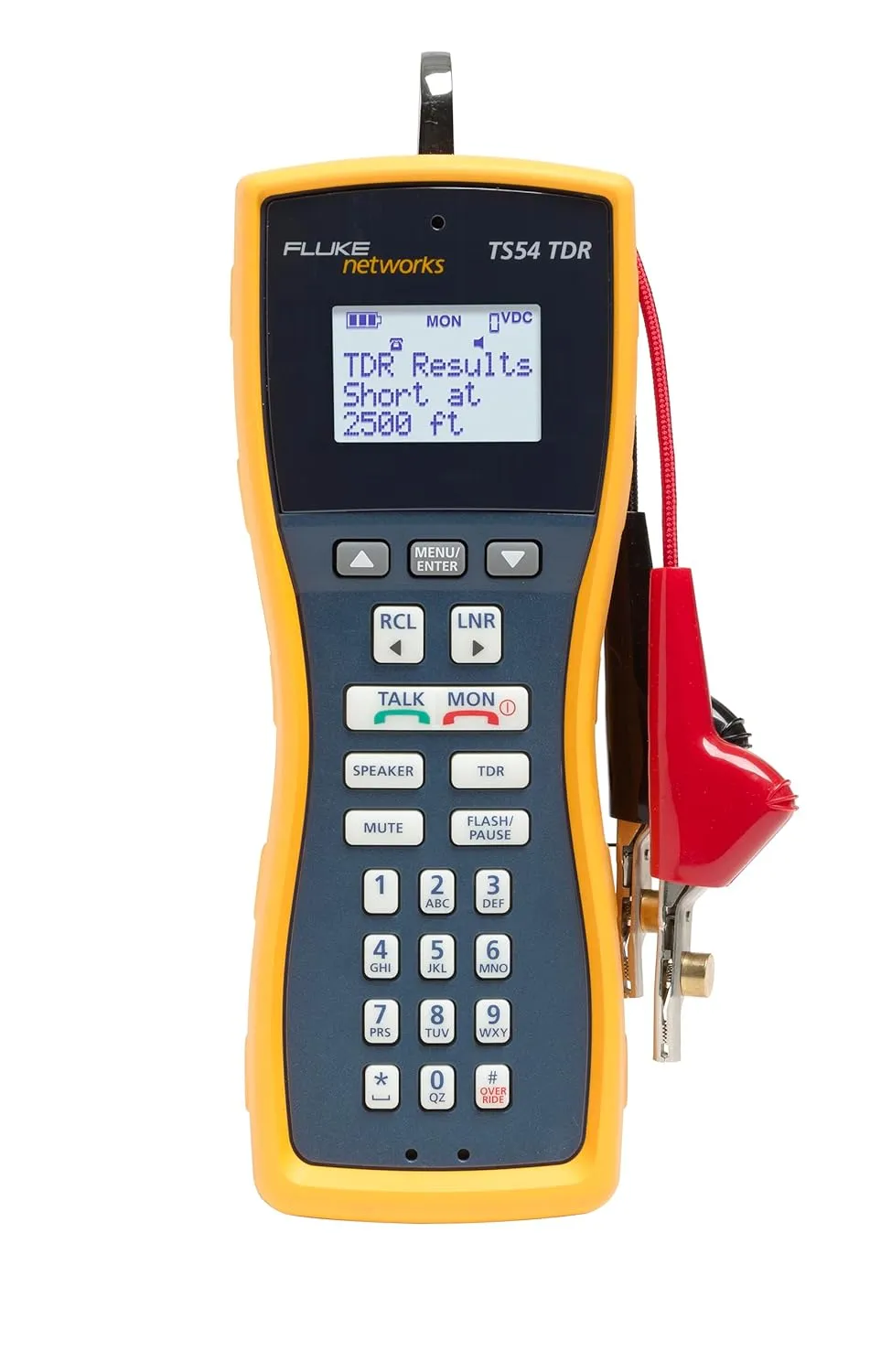

The Fluke Networks TS54 TDR test set, available with various line cord connectors to suit specific applications, incorporates a TDR, tone generator, and telephone test set into one tool for testing VDV cabling as well as POTS quality on live DSL lines without disrupting data services. The TDR (time-domain reflectometer) measures cable length and locates faults on virtually all types of cable including twisted pair, coaxial, and parallel conductors, finding the distance to open and short circuits in up to 3,000' of cabling. It has an adjustable VOP (velocity of propagation) setting to optimize the accuracy of fault location and cable length measurements. The analog tone generator sends a signal through wires for locating and tracing wires with a probe (sold separately), and has five distinct SmartTone cadences for isolating individual wire pairs. The telephone test set is designed for outside plant use to detect dial tone and polarity, place and receive calls, indicate line voltage and current, and verify caller ID and call waiting caller ID services; has a two-way, adjustable-volume speakerphone for hands-free conversation during testing; monitors lines without disrupting service; locks out off-hook testing when high-speed data is detected; and stores up to nine 23-digit telephone numbers which can be speed-dialed via the keypad. It provides tone or pulse operation. The test set has two basic modes of operation: talk mode for off-hook operations including verifying dialing and receiving calls, and monitor mode for on-hook operations including checking for an idle line, listening for line noise, measuring DC voltage on the line, and capturing DTMF (dual-tone multi-frequency) tones to check for proper signaling. In monitor mode, the test set provides a high impedance coupling to monitor lines without disrupting service. When switching to talk mode, the data lockout feature tests the line for high-speed data signals and remains on hook and beeps if such signals are detected. The lockout can be overridden to pull dial tone from a noise line. Telephone test sets, also called butt sets, are used by telecom technicians to troubleshoot and maintain copper-wire voice-subscriber lines such as POTS (plain old telephone service) lines. TDRs are used by network and telecom technicians and installers to troubleshoot, maintain, and optimize performance of VDV (voice, data, and video) cabling.
This test set meets IEC (International Electrotechnical Commission) safety standard 61010-1:2010 and is rated for CAT I installations to 300VDC, which covers equipment on circuits not directly connected to mains. It passes a 20' (6m) drop test and is Ingress Protection certified IP64 for protection against dust and splashed water. The test set can be programmed to turn off automatically after a specified period (default setting is two minutes) of inactivity to conserve battery life, and is made of high-impact plastic. The high-visibility glow-in-the-dark keypad has 12 standard dialing keys including star and pound, and function keys to store, recall, and redial numbers and to pause for accessing a second dial tone when dialing through a PBX (private branch exchange), among other functions. A backlit LCD tracks functions and test status, and displays line voltage from 4 to 140VDC and current from 0 to 120mA. At voltages less than 4VDC and greater than 140VDC, the test set locks out and will not allow off-hook operation. It is made of high-impact plastic and turns on automatically when clipped to an active line. A spring-loaded belt clip at the base of the unit provides a secure hold on belt loops and D-rings, and a jack accommodates a headset (sold separately). Additional specifications include various environmental operating conditions.
SpecificationsMaximum length tested for open and short circuits (TDR)914m/3,000'Line current rangeOff-hook: 10 to 100mADC resistanceOff-hook: 150Ω (nominal); on-hook: greater than 3MΩAC impedanceOff-hook: 600Ω (nominal), 300 to 3,400 Hz; on-hook: greater than 120kΩ, 300 to 3,400 HzRotary dial pulse rate10 or – 1 pulses per secondDTMF (dual-tone multi-frequency) tone frequency error or – 1.5% maximumMemory capacityNine 23-digit speed dial numbers, one redial numberSafety ratingsComplies with ANSI/ISA (American National Standards Institute/International Society of Automation) 82.02.01 (61010-1) 2004, Canadian Standards Association CAN/CSA-C22.2 No 61010-1-04, UL (Underwriters Laboratories) 61010-1 (2004), and IEC (International Electrotechnical Commission) 61010-1:2010 for CAT I, 300VDC, pollution degree 2Agency certifications and standards metCE (European Conformity) marking; conforms to relevant Australian EMC requirements and Canadian Standards Association standardsPower sourceShared line power; 9V alkaline battery (included)Dimensions211 x 81 x 66mm/8.3 x 3.2 x 2.6 inches (H x W x D)Weight0.53kg/1.16lb.
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Datacom and telecom installation and test devices, such as toners and test sets, check cabling and wiring to help ensure proper connections and operation. Tone generator and probe sets, also called toners, are used to locate, trace, and isolate cables in copper media networks. Telephone test sets, also called butt sets, are specialized telephones that connect to telephone lines to check for proper operation and to isolate trouble. Some test sets incorporate a TDR (time-domain reflectometer) and toner for determining cable length and locating faults. While certain devices may be used on live networks, others are only suitable for inactive networks. Field technicians and installers use these devices to set up, maintain, and troubleshoot datacom and telecom cabling within a building or in outside plant (OSP) applications.
Fluke Networks, a division of Fluke Corporation, manufactures tools and software for network deployment, performance management, and troubleshooting. The company, founded in 1992, is headquartered in Everett, WA.
What's in the Box.
Fluke Networks TS54 TDR test set
9V battery
Instructions.
Is Discontinued By Manufacturer : No
Product Dimensions : 1 x 1 x 1 inches; 1.1 Pounds
